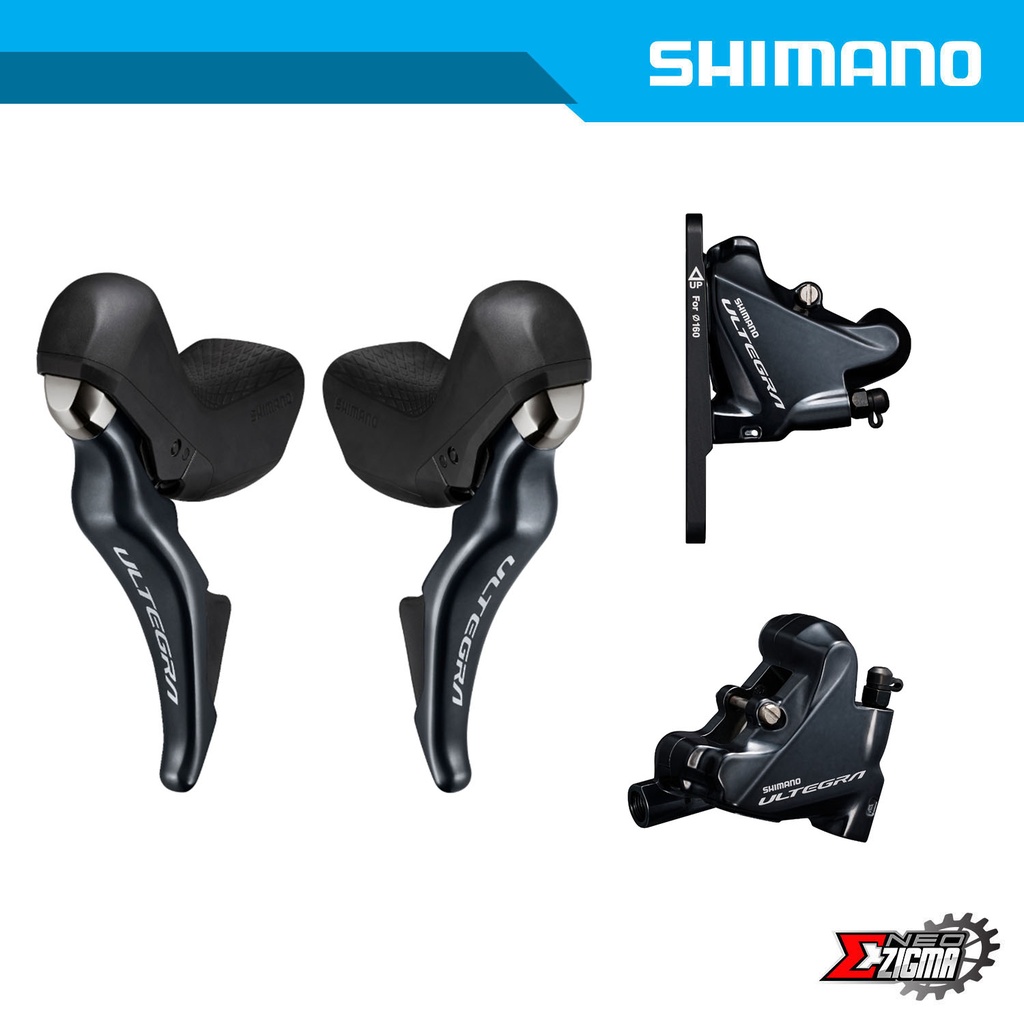

SHIMANO ULTEGRA - Hydraulic Disc Brake - DUAL CONTROL LEVER - SERVOWAVE - 2x11-speed - For Small Hands
SHIMANO ULTEGRA - Hydraulic Disc Brake - DUAL CONTROL LEVER - SERVOWAVE - 11-speed - For Small Hands
The SHIMANO ULTEGRA R8020 series shifters bring greater rider control in all conditions thanks to SHIMANO's category-leading hydraulic disc brakes. Lighter front shift action and refined ergonomic shape sweeten the deal.
FEATURES
- Greater control in all conditions for riders with smaller hands
- Smaller lever size and new positioning improves ergonomics
- Dedicated lever control for riders with smaller hands
- Quick and intuitive rear shifting operation
- Redesigned internal shifting unit
- Same light shifting operation as ULTEGRA R8000
PRODUCT SPECIFICATIONS
| MODEL NO | ST-R8025-L |
|---|
| SERIES | SHIMANO ULTEGRA R8000 Series |
|---|
| Color | Black |
|---|
| Average weight | 568 ( /pair) |
|---|
| Remarks | For small hand. |
|---|
| Bracket cover color|1 | Black |
|---|
| Shifter type | DUAL CONTROL LEVER |
|---|
| Shift lever|Front speeds | 2 |
|---|
| Brake lever|Brake hose (Kit) | SM-BH90-JK-SSR |
|---|
| Brake lever|Hose joint | Straight |
|---|
| Brake lever specifications|Brake hose color (kit)|1 | Black |
|---|
| Brake lever|Recommended brake caliper | BR-R8070 |
|---|
| Brake lever|Brake fluid|SHIMANO Mineral Oil | SHIMANO Mineral |
|---|
| Brake lever|Reach adjust|Tool | ✔ |
|---|
| Brake lever|Reach adjust | ✔ |
|---|
| Brake lever|Clamp band (mm) | 23.8-24.2 |
|---|
| Brake lever|Funnel bleeding | ✔ |
|---|
| Brake lever|Free stroke adjust | ✔ |
|---|
| Brake lever|SERVO WAVE | ✔ |
|---|
| Clamp band|Diameter (mm) | 23.8-24.2 |
|---|
| Shifter Lever body|Release | Resin & Steel |
|---|
| Shift lever cable|Outer casing|Lever side | OT-SP41 |
|---|
| Shift lever cable|Outer casing|Rear derailleur side | OT-RS900 |
|---|
| Shift lever cable|Inner cable|Polymer-coated cable | ✔ |
|---|
PRODUCT SPECIFICATIONS
| MODEL NO | ST-R8025-R |
|---|
| SERIES | SHIMANO ULTEGRA R8000 Series |
|---|
| Color | Black |
|---|
| Average weight | 568 ( /pair) |
|---|
| Remarks | For small hand. |
|---|
| Bracket cover color|1 | Black |
|---|
| Shifter type | DUAL CONTROL LEVER |
|---|
| Shift lever|Rear speeds | 11 |
|---|
| Shift lever|Max. multiple shifts (main lever/rear) | 2 |
|---|
| Shift lever|Compatible rear derailleur type | Road 11-speed |
|---|
| Brake lever|Brake hose (Kit) | SM-BH90-JK-SSR |
|---|
| Brake lever|Hose joint | Straight |
|---|
| Brake lever specifications|Brake hose color (kit)|1 | Black |
|---|
| Brake lever|Recommended brake caliper | BR-R8070 |
|---|
| Brake lever|Brake fluid|SHIMANO Mineral Oil | SHIMANO Mineral |
|---|
| Brake lever|Reach adjust|Tool | ✔ |
|---|
| Brake lever|Reach adjust | ✔ |
|---|
| Brake lever|Clamp band (mm) | 23.8-24.2 |
|---|
| Brake lever|Funnel bleeding | ✔ |
|---|
| Brake lever|Free stroke adjust | ✔ |
|---|
| Brake lever|SERVO WAVE | ✔ |
|---|
| Clamp band|Diameter (mm) | 23.8-24.2 |
|---|
| Shifter Lever body|Release | Resin & Steel |
|---|
| Shift lever cable|Outer casing|Lever side | OT-SP41 |
|---|
| Shift lever cable|Outer casing|Rear derailleur side | OT-RS900 |
|---|
| Shift lever cable|Inner cable|Polymer-coated cable | ✔ |
|---|
SHIMANO ULTEGRA - Flat Mount - Hydraulic Disc Brake - Rear Caliper
With a low-profile Flat Mount design, the SHIMANO ULTEGRA R8000 series hydraulic disc brakes provide greater control in all conditions without interrupting the aero lines of road bikes.
FEATURES
- Better control in all conditions
- Hydraulic disc brake provides the next stage of control
- Sleek integration into a road bike’s aero profile
- Designed to integrate seamlessly with a road bike’s profile
- Flat mount hydraulic type
PRODUCT SPECIFICATIONS
| MODEL NO | BR-R8070-F |
|---|
| SERIES | SHIMANO ULTEGRA R8000 Series |
|---|
| Color | Series color |
|---|
| Average weight | 141 |
|---|
| Brake type | Hydraulic disc brake |
|---|
| Brake hose (Kit) | SM-BH90-JK-SSR, SM-BH90-J-SSR |
|---|
| Hose joint | Straight |
|---|
| Brake hose color (kit)|1 | Black |
|---|
| J-Kit spec (for OEM) | ✔ |
|---|
| ICE TECHNOLOGIES pad compatible caliper | ✔ |
|---|
| Pad|Standard 1 | K05S-RX Resin (w/o fin) |
|---|
| Pad|Standard 2 | L05A-RF Resin (w/ fin) |
|---|
| Pad|Option 1 | K04S-MX Metal (w/o fin) |
|---|
| Pad|Option 2 | L04C-MF Metal (w/ fin) |
|---|
| Recommended brake lever | ST-R8070 ST-R8020 |
|---|
| Recommended disc brake rotor | SM-RT800 |
|---|
| Oil | SHIMANO mineral |
|---|
| ONE WAY BLEEDING | ✔ |
|---|
| Mount type | Flat mount |
|---|
| Piston | 2 |
|---|
| Caliper fixing bolt|Tool size | 4 mm |
|---|
| Caliper fixing bolt|Anti loosen method | Screw fix pin+Snap ring |
|---|
| Pad mount | Pad axle |
|---|
PRODUCT SPECIFICATIONS
| MODEL NO | BR-R8070-R |
|---|
| SERIES | SHIMANO ULTEGRA R8000 Series |
|---|
| Color | Series color |
|---|
| Average weight | 124 |
|---|
| Brake type | Hydraulic disc brake |
|---|
| Brake hose (Kit) | SM-BH90-JK-SSR, SM-BH90-J-SSR |
|---|
| Hose joint | Straight |
|---|
| Brake hose color (kit)|1 | Black |
|---|
| J-Kit spec (for OEM) | ✔ |
|---|
| ICE TECHNOLOGIES pad compatible caliper | ✔ |
|---|
| Pad|Standard 1 | K05S-RX Resin (w/o fin) |
|---|
| Pad|Standard 2 | L05A-RF Resin (w/ fin) |
|---|
| Pad|Option 1 | K04S-MX Metal (w/o fin) |
|---|
| Pad|Option 2 | L04C-MF Metal (w/ fin) |
|---|
| Fixing screw spec for rear mount|10 mm mount | ✔ |
|---|
| Fixing screw spec for rear mount|15 mm mount | ✔ |
|---|
| Fixing screw spec for rear mount|20 mm mount | ✔ |
|---|
| Fixing screw spec for rear mount|25 mm mount | ✔ |
|---|
| Fixing screw spec for rear mount|30 mm mount | ✔ |
|---|
| Fixing screw spec for rear mount|35 mm mount | ✔ |
|---|
| Recommended brake lever | ST-R8070 ST-R8020 |
|---|
| Recommended disc brake rotor | SM-RT800 |
|---|
| Oil | SHIMANO mineral |
|---|
| ONE WAY BLEEDING | ✔ |
|---|
| Mount type | Flat mount |
|---|
| Piston | 2 |
|---|
| Caliper fixing bolt|Tool size | 4 mm |
|---|
| Caliper fixing bolt|Anti loosen method | Screw fix pin |
|---|
| Pad mount | Pad axle |
|---|
