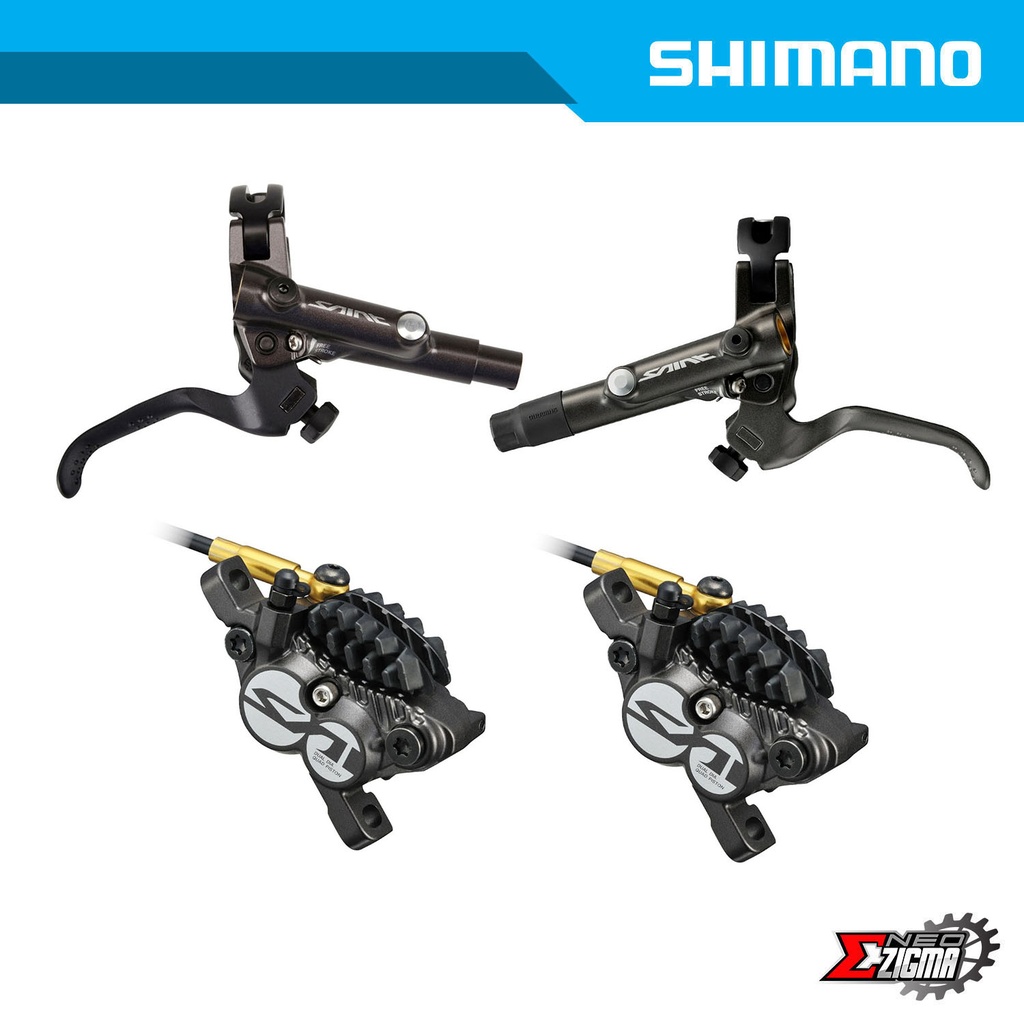

SHIMANO SAINT- Hydraulic Disc Brake Lever - I-SPEC B Clamp Band - SERVO WAVE Action
The world's best gravity riders rely on SHIMANO SAINT brakes to deliver ultimate stopping power and nuanced modulation no matter the conditions. For sure braking in the roughest terrain, the BL-M820 levers are textured and feature tool-free reach adjust, Free Stroke adjustment, and I-spec B compatibility.
FEATURES
- Ergonomic antiskid lever
- Lighter short Servo Wave lever
- Free Stroke & tool less Reach Adjust
- I-spec compatible
- Weight: 103.2g
PRODUCT SPECIFICATIONS
| MODEL NO | BL-M820-B |
|---|
| SERIES | SAINT M820 Series |
|---|
| Color | Series color |
|---|
| Average weight | 104 |
|---|
| Brake type | Hydraulic disc brake |
|---|
| Lever size (finger) | 2 |
|---|
| Brake hose (Kit) | SM-BH90-SBLS |
|---|
| Hose joint | Straight |
|---|
| Brake hose color (kit)|1 | Black |
|---|
| Brake hose color (kit)|2 | White |
|---|
| J-Kit spec (for OEM) | ✔ |
|---|
| SERVO WAVE | ✔ |
|---|
| Reach adjust|Toolless | ✔ |
|---|
| Free stroke adjust | ✔ |
|---|
| Compatible shift lever mount|Clamp band | ✔ |
|---|
| Compatible shift lever mount|I-SPEC B | ✔ |
|---|
| Clamp band|Open clamp | ✔ |
|---|
| Recommended brake caliper | BR-M820 |
|---|
| Oil | SHIMANO mineral |
|---|
| Funnel bleeding | ✔ |
|---|
SAINT - ICE TECHNOLOGIES - 4-Piston - Hydraulic Disc Brake Caliper
The ultimate gravity and downhill brake, the SAINT hydraulic disc brake features a rigid caliper, 4-ceramic pistons, and integrated ICE TECHNOLOGIES heat management.
FEATURES
- ICE TECHNOLOGIES heat management
- High power 4-ceramic piston caliper
- Easy and clean bleeding
- One Way Bleeding caliper
- Funnel bleeding tool
- Pad: H01A Resin/H03C Metal
- Weight: 306g (Resin pad with radiator fin)
PRODUCT SPECIFICATIONS
| MODEL NO | BR-M820 |
|---|
| SERIES | SAINT M820 Series |
|---|
| Color | Series color |
|---|
| Average weight | 153 |
|---|
| Brake type | Hydraulic disc brake |
|---|
| Brake hose (Kit) | SM-BH90-SBLS |
|---|
| Hose joint | Banjo |
|---|
| Brake hose color (kit)|1 | Black |
|---|
| Brake hose color (kit)|2 | White |
|---|
| J-Kit spec (for OEM) | ✔ |
|---|
| ICE TECHNOLOGIES pad compatible caliper | ✔ |
|---|
| Pad|Standard 1 | H03A-RF Resin (w/ fin) |
|---|
| Pad|Standard 2 | H03C-MF Metal (w/ fin) |
|---|
| Recommended brake lever | BL-M820 |
|---|
| Recommended disc brake rotor | SM-RT99, SM-RT86 |
|---|
| Compatible Brake Rotor Size|140 mm (SS) | ✔ |
|---|
| Compatible Brake Rotor Size|160 mm (S) | ✔ |
|---|
| Compatible Brake Rotor Size|180 mm (M) | ✔ |
|---|
| Compatible Brake Rotor Size|203 mm (L) | ✔ |
|---|
| Compatible brake rotor size|220 mm (LL) | ✔ |
|---|
| Oil | SHIMANO mineral |
|---|
| ONE WAY BLEEDING | ✔ |
|---|
| Mount type | Post type |
|---|
| Piston | 4 |
|---|
| Caliper fixing bolt|Tool size | 5 mm |
|---|
| Caliper fixing bolt|Anti loosen method | Snap ring |
|---|
| Pad mount | Pad axle |
|---|
