Superior chain retention and power transfer for fun riding over the rough stuff
Grow your confidence riding hard over the rough stuff with this crankset's wide-range gearing and seamless pedaling.
FEATURES
- 2-PIECE CRANKSET increases rigidity of crankset with less weight and transmits pedaling force efficiently
- Special gear tip shape improves chain engagement and retention for smooth riding over rough terrain
- DYNAMIC CHAIN ENGAGEMENT+
PRODUCT SPECIFICATIONS

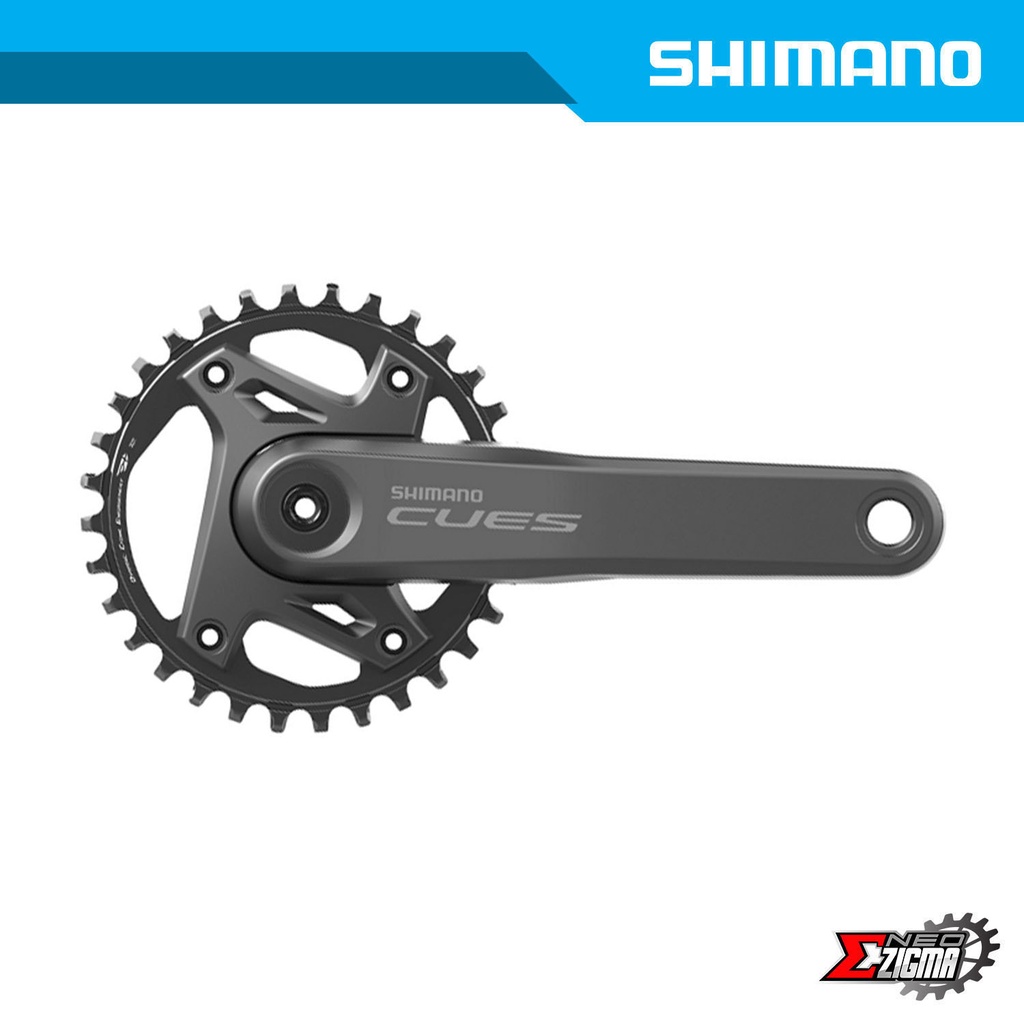

| MODEL NO | FC-U6000-1 |
|---|
| SERIES | CUES U6000 Series 11-speed |
|---|
| Color | Series color |
|---|
| Rear speeds | 11/10/9 |
|---|
| Compatible chain | LINKGLIDE, HG 11-speed |
|---|
| Chain line (mm) | 52 (30T, 32T), 50 (40T, 42T) |
|---|
| O.L.D.|Thru (mm) | 148, 142 (30T, 32T), 142 (40T, 42T) |
|---|
| O.L.D.|QR/Nut (mm) | 141, 135 (30T, 32T), 135 (40T, 42T) |
|---|
| P.C.D. (mm) | 96 (30T, 32T), 110 (40T, 42T) |
|---|
| Spider/Gear arms | 4 |
|---|
| Chainring combination | 30T, 32T, 40T, 42T |
|---|
| Q-factor (mm) | 180 |
|---|
| Crank arm length (mm)|170 | ✔ |
|---|
| Crank arm length (mm)|175 | ✔ |
|---|
| Optional chain guard|With chain guard | X (40T, 42T) |
|---|
| Optional chain guard|Without chain/bash guard | ✔ |
|---|
| 2-PIECE CRANKSET | ✔ |
|---|
| Compatible bottom bracket type|Outboard | ✔ |
|---|
| Recommended bottom bracket|Threaded (normal) | BB-MT501 |
|---|
| Recommended bottom bracket|Threaded (chain case) | BB-MT501 |
|---|
| Recommended bottom bracket|Press-fit | BB-MT500-PA |
|---|
| Threaded bottom bracket shell width (mm)|68 | ✔ |
|---|
| Threaded bottom bracket shell width (mm)|73 | ✔ |
|---|
| Chain case compatible | X (40T, 42T) |
|---|
| Stainless chain guard fixing screw | ✔ |
|---|
| Crank fixing screw included | ✔ |
|---|
