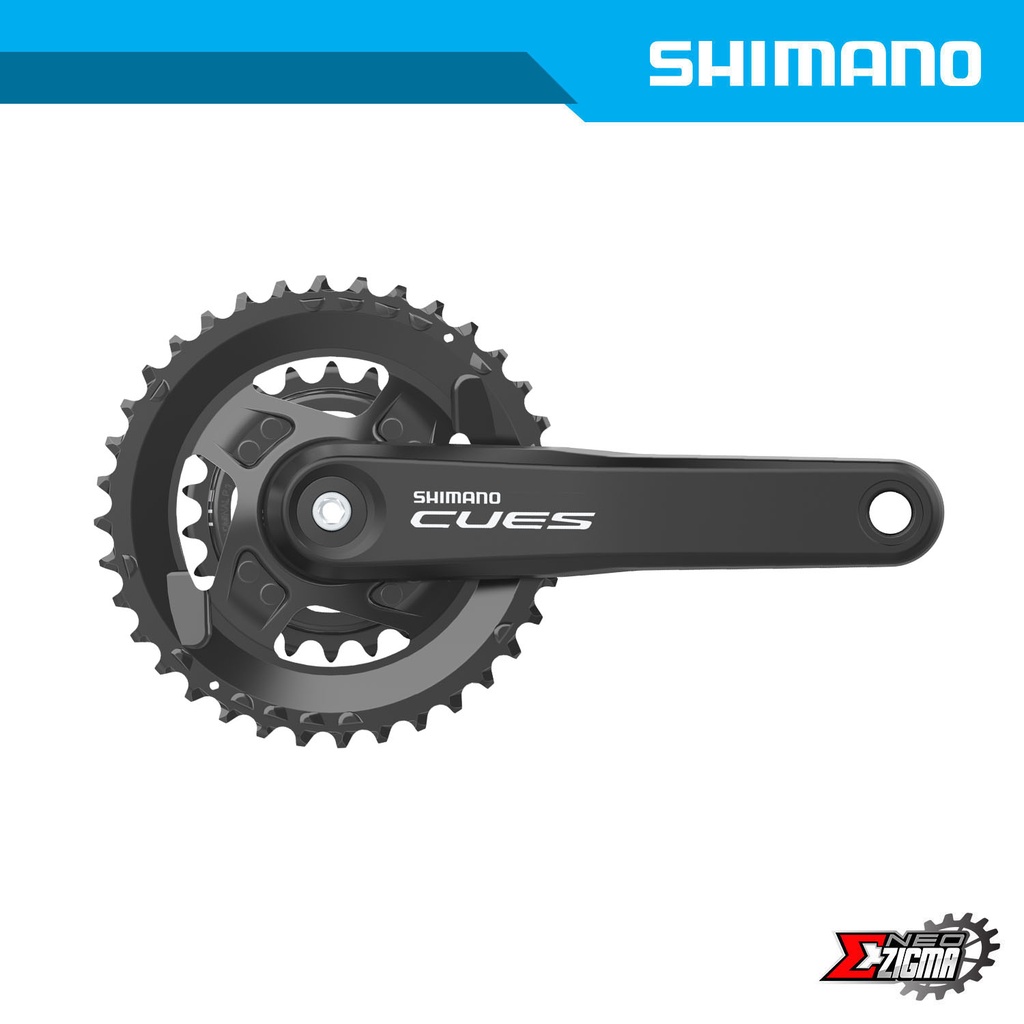

Reliable performance and smooth all-terrain pedaling
Spend more time enjoying the freedom of trekking with this crankset's seamless and efficient pedaling. It is available in three wide-range options: 46-30T, 40-26T, or 36-22T.
FEATURES
- 2-PIECE CRANKSET increases rigidity of crankset with less weight and transmits pedaling force efficiently
- Chain case only compatible with 46-30T
PRODUCT SPECIFICATIONS
| MODEL NO | FC-U4010-2 |
|---|
| SERIES | CUES U4000 Series |
|---|
| Color | Series color |
|---|
| Rear speeds | 11/10/9 (36-22T, 40-26T), 10/9 (46-30T) |
|---|
| Compatible chain | LINKGLIDE, HG 11-speed |
|---|
| Chain line (mm) | 48.8 |
|---|
| O.L.D.|Thru (mm) | 142 |
|---|
| O.L.D.|QR/Nut (mm) | 135 |
|---|
| P.C.D. (mm) | Riveted |
|---|
| Spider/gear arms | 4 |
|---|
| Chainring combination | 36-22T, 40-26T, 46-30T |
|---|
| Q-factor (mm) | 180 |
|---|
| Crank arm length (mm)|170 | ✔ |
|---|
| Crank arm length (mm)|175 | ✔ |
|---|
| Optional chain guard|With chain guard | X (40-26T, 46-30T) |
|---|
| Optional chain guard|Without chain/bash guard | ✔ |
|---|
| 2-PIECE CRANKSET | ✔ |
|---|
| Compatible bottom bracket type|Outboard | ✔ |
|---|
| Recommended bottom bracket|Threaded (normal) | BB-MT501 |
|---|
| Recommended bottom bracket|Threaded (chain case) | BB-MT501 |
|---|
| Recommended bottom bracket|Press-Fit | BB-MT500-PA |
|---|
| Threaded bottom bracket shell width (mm)|68 | ✔ |
|---|
| Threaded bottom bracket shell width (mm)|73 | ✔ |
|---|
| Chain case compatible | X (46-30T) |
|---|
| Crank fixing screw included | ✔ |
|---|
